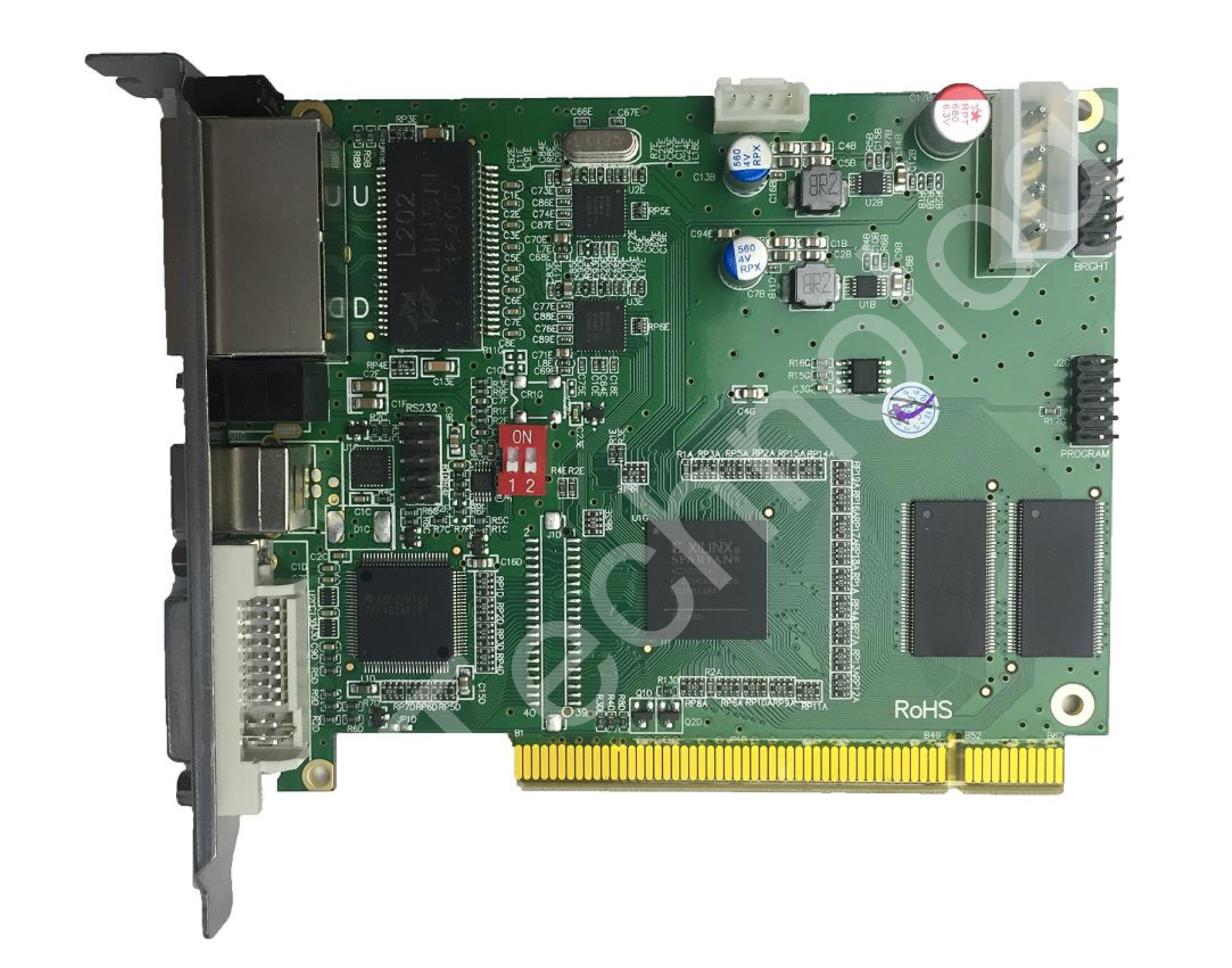

800.08 LINSN sending card TS802D

1. TS802D sending card max supports 2048*1280

2. Supporting display mode: 640*480  800*600  1024*768  1280*768  1280*800 1280*1024 1440*800

    1600*1024 1920*1024 2048*1280

3. Sending card U/D port flexibility for carrying half width or half height

    For example, TS802 can max support 2048*1280 with two ports

    A single network output port supports 2048*320 or 1280*640

4. Sending card rotation function

    In Sender setting, sending card has 0, 90, 180, 270 degree rotation function

5. Sending card zoom in/out function

    In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out

6. Supporting 10-bit colors

    The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors.

7. Multi-display synchronous and combination functions.

    One sending card can control multi-displays, realizing displays combination, synchronous display, and

    independent play
